Cross Stabilized Conveyor Belt   > cross stabilized conveyor belt >

  • cross stabilized conveyor belt
  • cross stabilized conveyor belt
  • cross stabilized conveyor belt
  • cross stabilized conveyor belt
cross stabilized conveyor belt cross stabilized conveyor belt cross stabilized conveyor belt cross stabilized conveyor belt

cross stabilized conveyor belt

  • It is based in the following main components:
  • (1) Cross-stabilised Base Belts
  • (2) Sidewalls
  • (3) Cleats
  • Sidewall Conveyor blet has been designed with two corrugated sidewalls and cleats
  • molded to cross-rigid base belt can carry heavy product loads up to the inclined angle
  • of 75° This belt is popular to be used where space where space is at a premium and
  • steep incline angles are desired.
  • The Base Belt :
  • The base belt is designed to bend efficiently in a longitudinal direction and has greater rigidity in a transverse direction by utilizing reinforced fabrics with monofilament the creates a fabric carcass of high tension.
  • Features:
  • It can be deflected from the horizontal to an incline or vertical and back again without bowing or sagging. These deflection points as well as the belt returning on free lateral space by snub idlers definitely require the corss-rigidity of the base belt. The designed mno-filament fabrics provide better returnside support, no wear and tear of cleat and cover rubber is available with various compounds like abrasion resistance oil, heat, flame resistance.


It is based in the following main components:

(1) Cross-stabilised Base Belts
(2) Sidewalls
(3) Cleats

Sidewall Conveyor blet has been designed with two corrugated sidewalls and cleats
molded to cross-rigid base belt can carry heavy product loads up to the inclined angle
of 75° This belt is popular to be used where space where space is at a premium and
steep incline angles are desired.

The Base Belt :

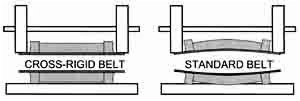

The base belt is designed to bend efficiently in a longitudinal direction and has greater rigidity in a transverse direction by utilizing reinforced fabrics with monofilament the creates a fabric carcass of high tension.

It can be deflected from the horizontal to an incline or vertical and back again without bowing or sagging. These deflection points as well as the belt returning on free lateral space by snub idlers definitely require the corss-rigidity of the base belt. The designed mno-filament fabrics provide better returnside support, no wear and tear of cleat and cover rubber is available with various compounds like abrasion resistance oil, heat, flame resistance.

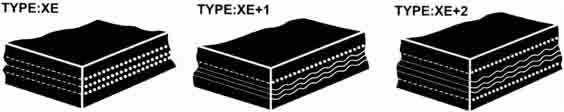

Base Belt Type:

Belt Composition:

X=Corss-Stabilised Construction
E=Polyester Tension Plies
+1=One Ply of Cross-Stabilised
+2=Number of Separate Cross-Stabilising Plies

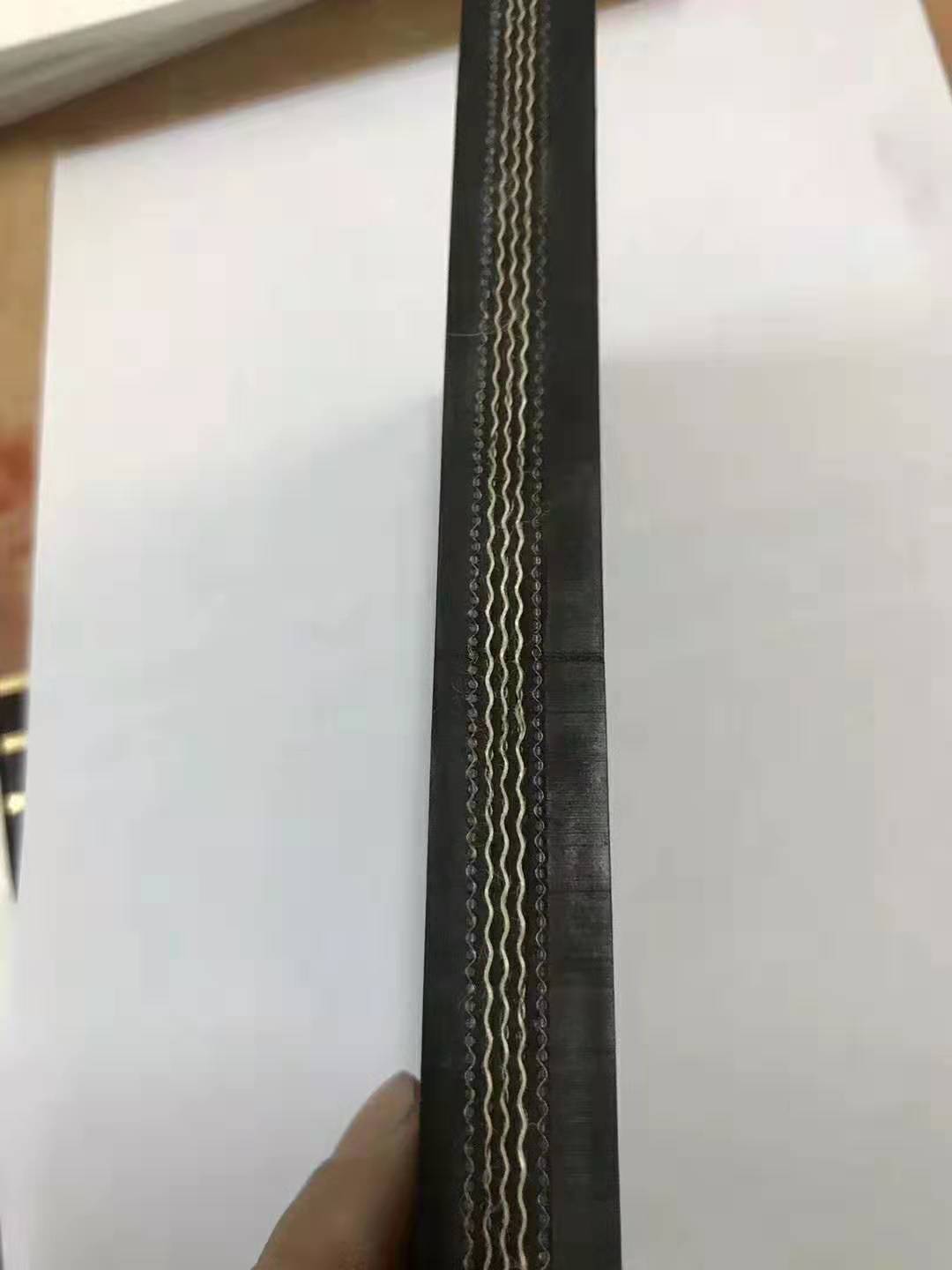

XE+2:is a multiply construction with cut edges based upon carcass of EP fabric and one monofilament ply on each side of the EP carcass integrated into the upper and lower cover.

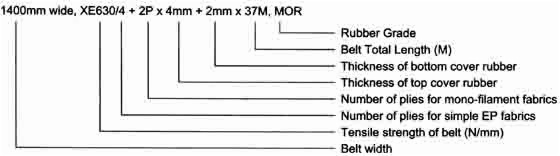

An example of base belt indication:
