steel cord conveyor belting

  • Steel Cord conveyor belt

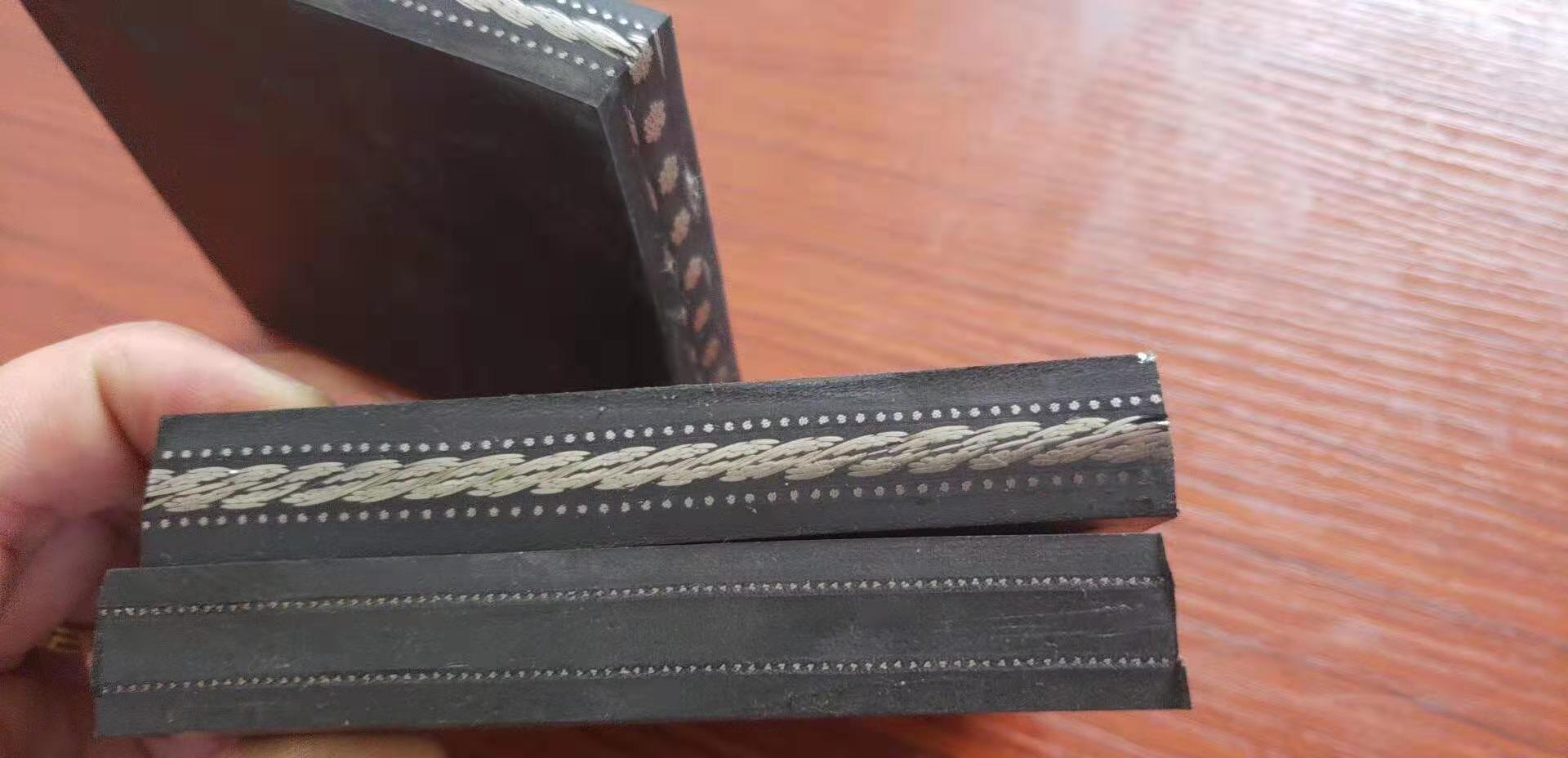

  • Structure: The belt core is comprised of longitudinally and evenly arranged non-spinning galvanized wire ropes and high adhesive core rubber, with the upper side and lower side covered with rubber layer.
  • Model:
  • ST630, ST800, ST1000, ST1250, ST1600, ST2000, ST2500, ST3150, ST3500, ST4000, ST4500, ST5000, ST5400.
  • INQUIRY

  Belt Strength(ST-NO. )

  Max cord diam(mm)

 Composition

Pitch(mm)

  Standard working tension(N/mm)

Standard Thickness t1t2   (mm)

  Tape reference quality    (kg/  m2 )

Min. pulley diam(mm)

Cord strength    KN/piece

  ST-630

  3

  K6X7+IWS

  10

  90

  5X5

  19.1

  800

  6.93

  ST-800

  3.5

  K6X7+IWS

  10

  110

  5X5

  20.6

  800

  8.8

  ST-1000

  4

  K6X7+IWS

  12

  140

  6X6

  24.7

  800

  13.2

  ST-1250

  4.5

  K6X7+IWS

  12

  175

    6X6

  25.4

  800

  16.5

  ST-1600

  5

  K6X19+IWS

  12

  225

    6X6

  26

  1000

  21.12

  ST-2000

  6

  K6X19+IWS

  12

  285

    8X6

  30

  1000

  26.4

  ST-2500

  7.2

  K6X19W+IWS

  15

  355

    8X6

  32.2

  1250

  41.25

  ST-3150

  8.1

  K6X19W+IWS

  15

  450

  8X8

  35.7

  1400

  51.98

  ST-3500

  8.6

  K6X19W+IWS

  15

  500

  8X8

  44.9

  1500

  57.7

  ST-4000

  8.9

  K6X19W+IWS

  15

  570

  8X8

  46.6

  1600

  66

  ST-4500

  9.7

  K6X19W+IWS

  16

  645

  8X8

  49

  1800

  79.2

  ST-5400

  11.3

  K6X19W+IWS

  17

  760

  9X9

  57.5

  2000

  101

 width: 400mm-2200mm;

thickness :6mm-30mm

length:20m-1000m;

rubber cover tensile strength: 8mpa -25mpa.

fabric tensile : Ep80-ep400.



packages: plastic sheets  or  according to customer enquirments.

shipping: by containers , if customer need steel pallets, we can offer it.



quality guarranty period:

1.   general belts,  guarranty period is 12months

2.   heat resistant belt : 180c  only 6months, up 200c, guarranty period is 3 months.

3.   steel cords belts guarranty period is 36months.

4.   we can offer technical references for using,

5.   if  products got not manue demaged , we will send engineer to fix or  repoduce the products during our gurranty period.
