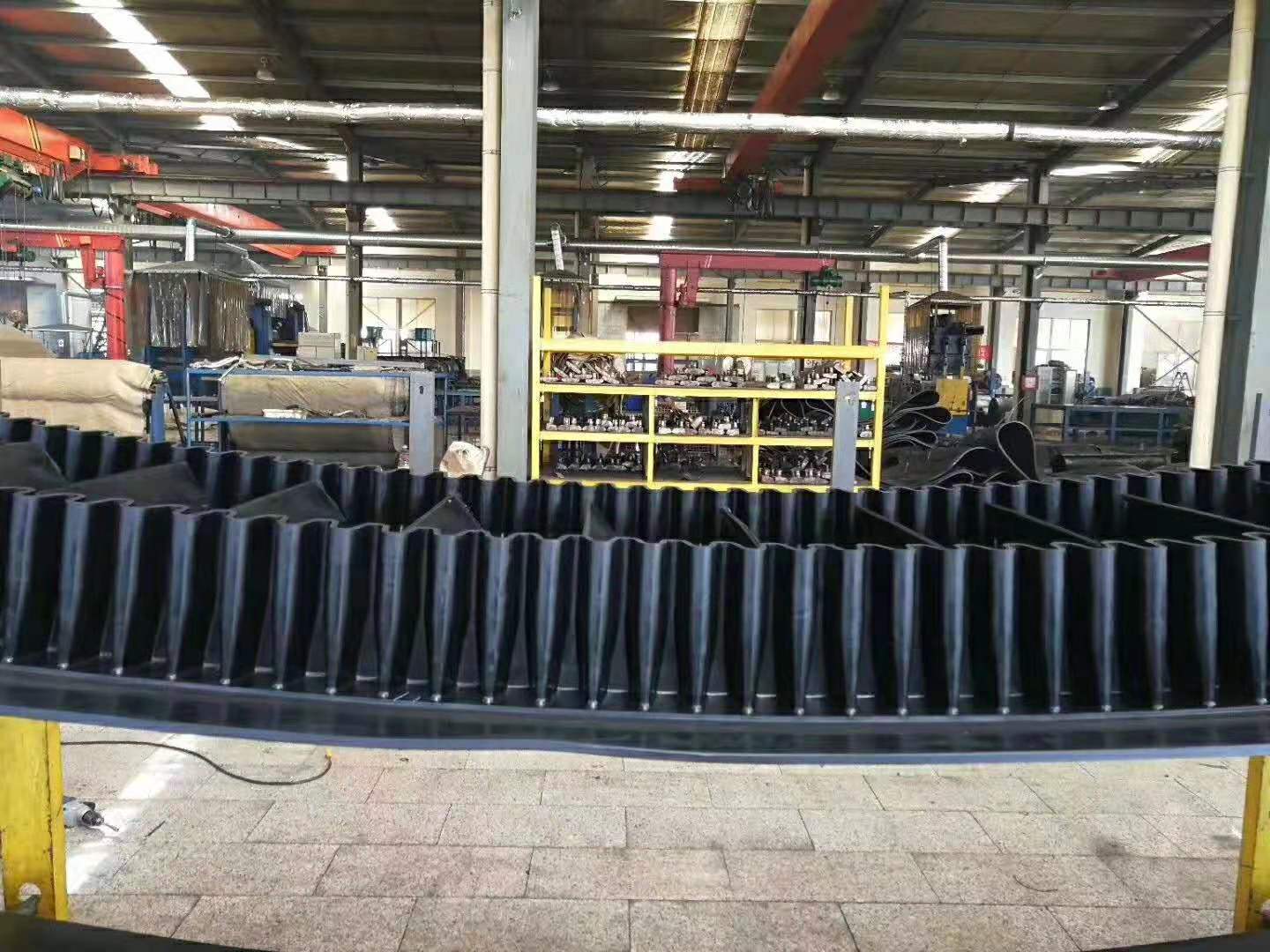

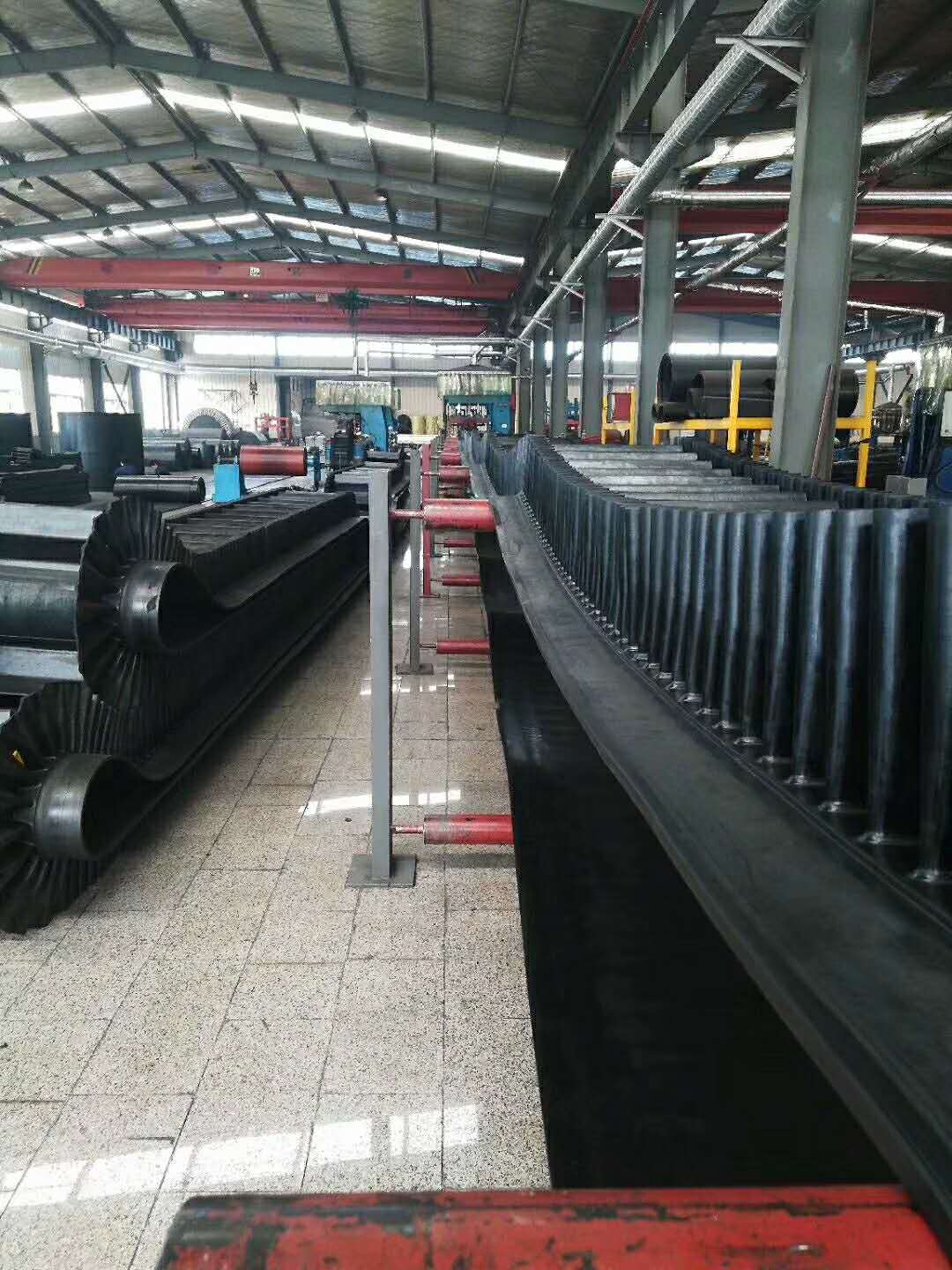

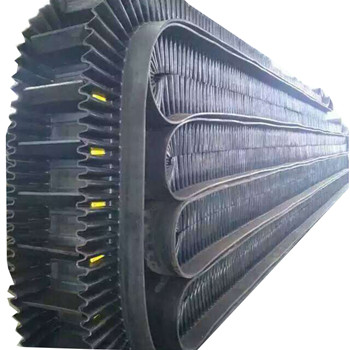

- Corrugated Sidewall Conveyor Belt
- Base Belt Width: 400-2400(mm)
- Sidewall height: 35-630(mm)
- Cleat Height: 35-600(mm)
- Base Belt Structure:
- Four parts: Top cover rubber; Bottom cover rubber; Reinforced core;
- Cross rigid.
- Thickness of top cover rubber: 3-6mm;
- Thickness of bottom cover rubber: 1.5-4.5mm
- Belt core: Cotton, Nylon, EP or Steel Cord
- The Width is the same as normal belt. The standard meets with GB/T7984-2001.
- Corrugated sidewall conveyor belt is one of the most effective ways of elevating materials in a confined space, the economy is achieved by single belt operation, wide range material can be handled, less space requirement, no transfer point, low maintenance and big capacity. Corrugated sidewall belt can be designed into a set of complete transportation system according to application。
